Plywood in Dubai Building Projects

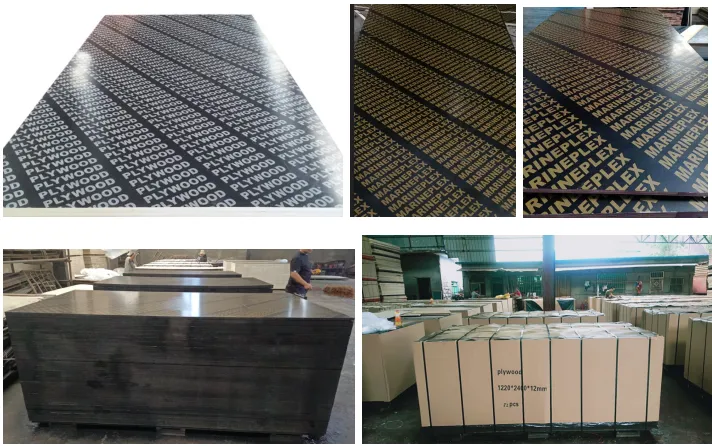

Film Faced Plywood


Features:


1) Made of climate-resistant one grade Dynea WBP glue
2) Film: imported from Finland and Dynea, weight 185g/m2
3) Anti-abrasive, winkles-resistant and anti-erosive
4) If put in boiling water for 48 hours, it is still glue-sticking and non-deformed
5) If used abide by the illustrations strictly, it can be reused more than 50 times, thus reducing the cost greatly
and avoiding the disadvantages: rustily and erosive of iron mould
6) Solves the problems of leaking and rough surface during constructing process
7) Particularly suitable for watering concrete project because it can make the concrete surface smooth and flat
8) Can decorate or brush directly without any renovation
9) Realizing a higher economic profits
10) Physical mood is better than iron moulds and can satisfy the requirements of constructing mould, while
the iron ones are easy to be deformed and can hardly recover its smoothness even after repairing

Application:

Suitable for construction, concrete formwork (The panels hold the concrete in a mould until it sets), and widespread on beams, bridges, large deck forms, dam , and other civil engineering projects.


Parameters:

Product Name

FINLAND DYNEA FILM FACED PLYWOOD

Size

1220x2440mm, 1200x2400, 1250x2500mm or customized

Thickness

12~25mm

Thickness Tolerance

+/-0.5mm

Face/Back

Imported Finland dynea brown film or anti-slip film (black or brown)

Core

Poplar, Combi, Eucalyptus (Hardwood), Birch, etc.

Edge Treatment

Sealed by waterproof paint or transparent wbp glue

Glue

WBP Phenolic Glue

Corrosion Resistance

No pollution to concrete surface

Resistance

Good weather resistance, can with stand temperature -10-50

Technology:

Two times hot pressed, three times hot pressed or more

Loading quantity:

1x20GP, 8pallets, 25CBM;  1X40HQ, 18pallets, 55CBM

Payment terms:

(1)TT30% deposit in advance , the balance be paid before shipping (2)100% LC at sight

Delivery time:

15-25working days after confirm deposit

Package:

Standard export MDF boards packing with belt.

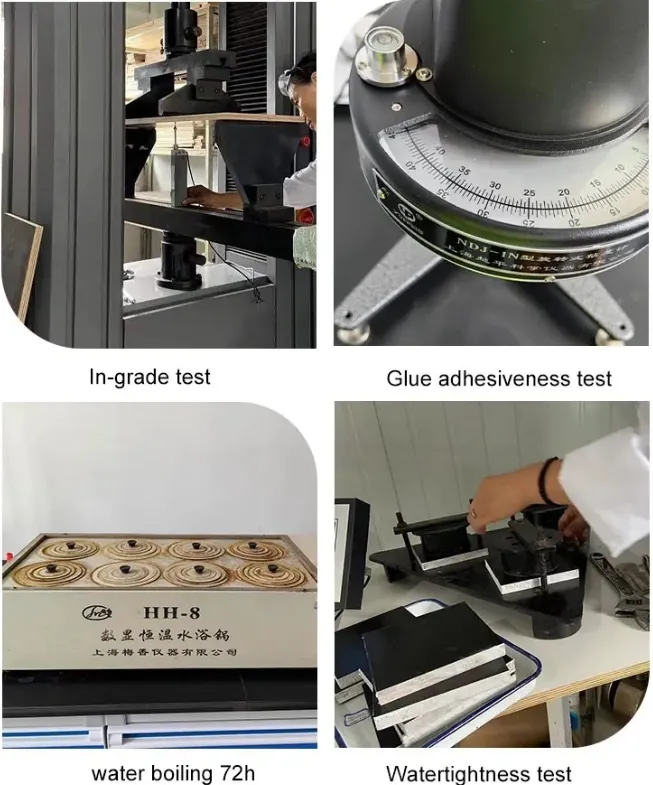

Technical Parameters

Moisture Content

6%~12%

Dip-peeling performance

0

Water Absorption

≤10%

Modulus of Elasticity

Longitudinal5000Mpa

Modulus of Elasticity

Transverse4000MPa

Static Bending Strength

≥30Mpa

Surface Bonding Strength

≥1.60Mpa

Internal Bonding Strength

≥0.90Mpa

Screw Holding Ability

Face

≥2000N

Edge

≥1600N
